Kia Telluride Fuse Box Description

[jmick21]

Interior Driver Side Fuse Box

• MODULE 4 7.5 A ATM (Auto Transmission) Shift Lever Switch, Stop LampSwitch, Driver Door Module
• AIR BAG 1 15 A SRS (Supplemental Restraint System) Control Module, Passenger Occupant Detection Sensor
• BRAKE SWITCH 7.5 A IBU (Integrated Body Control Unit), Stop Lamp Switch
• MODULE 9 15 A Front A/C Control Module, Low DC-DC Converter (Audio), Power Tail Gate Module, Driver IMS Control Module, Driver Door Module, Driver/Passenger Power Outside Mirror,
• MODULE 12 7.5 A Head-Up Display
• MODULE 10 10 A Blind-Spot Collision Warning Unit LH/RH, Front A/C Control Module, Rear A/C Control Module, Electro Chromic Mirror, Data Link Connector
• AIR BAG IND 10 A Front A/C Control Module, Instrument Cluster
• IBU 1 7.5 A IBU (Integrated Body Control Unit)
• MODULE 2 7.5 A Surround View Monitor Unit, AC Inverter Outlet, AC Inverter Unit, Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module,2ND Air Ventilation Seat Control Module LH/RH,2ND Seat Warmer Control Module LH/RH
• MODULE 8 7.5 A Hazard Switch, Rain Sensor, Driver/Passenger Smart Key Outside Handle, Mood Lamp Control Unit, Driver/Passenger Mood Lamp, Driver/Passenger Door Mood Lamp, Rear Dooe Mood Lamp LH/RH
• S/HEATER (FRT) 20 A Front Air Ventilation Control Module, Front Seat Warmer Control Module
• AIR BAG 2 15 A SRS (Supplemental Restraint System) Control Module
• MODULE 5 7.5 A Multifunction Camera Unit, Crash Pad Switch, IBU (Inte- grated Body Control Unit), Smart Cruise Control Radar, ATM (Auto Transmission) Shift Lever Indicator, 4WD ECM (Engine Control Module), Console Switch, Electric Parking Brake Switch
• IBU 2 15 A IBU (Integrated Body Control Unit)
• SUNROOF 2 20 A Rear Sunroof Controller
• MODULE 1 7.5 A IBU (Integrated Body Control Unit)
• P/WINDOW RH 25 A Passenger Safety Power Window Module, Rear Safety
• Power Window Module RH
• RR SEAT (LH) 25 A 2ND Air Ventilation Seat Control Module LH, 2ND Seat Warmer Control, Module LH, 2ND Seat LH Reclining Folding Actuator
• CLUSTER 7.5 A Instrument Cluster, Head-Up Display
• MDPS 10 A MDPS (Motor Driven Power Steering) Unit
• A/C 7.5 A E/R Junction Block (Blower FRT Relay, Blower RR Relay, PTC Heater 1/2 Relay), Front A/C Control Module, Rear A/C Control Module
• CHILD LOCK 15 A ICM (Integrated Circuit Module) Relay Box (Child Lock/UnlockRelay)
• DOOR LOCK 20 A Door Lock Relay, Door Unlock Relay, Tail Gate Relay, T/Turn Unlock Relay
• SUNROOF 1 20 A Front Sunroof Controller
• MODULE 11 10 A Rear Occupant Detection Sensor
• P/WINDOW LH 25 A Driver Safety Power Window Module, Rear Safety Power Window Module LH
• MODULE 3 7.5 A IBU (Integrated Body Control Unit)
• MODULE 6 7.5 A Audio, A/V & Navigation Head Unit, Low DC-DC Converter (Audio/AMP), Front A/C Control Module, Electro Chromic Mirror, Center fascia Keyboard, Driver/Passenger Seat Warmer Switch, Driver/Passenger Seat Warmer LIN Switch, Driver IMS Control Module, Rear Power Window Switch LH/ RH, Front Air Ventilation Control Module, Front Seat Warmer Control Module,2ND Air Ventilation Seat ControlModule LH/RH,2ND Seat Warmer Control Module LH/RH
• WASHER 15 A Multifunction Switch
• RR SEAT (RH) 25 A 2ND Air Ventilation Seat Control Module RH, 2ND Seat Warmer Control, Module RH, 2ND Seat RH Reclining Folding Actuator
• WIPER RR 15 A Rear Wiper Relay, Rear Wiper Motor
• AMP 25 A Low DC-DC Converter (AMP) A
• CC 7.5 A IBU (Integrated Body Control Unit), Low DC-DC Converter (Audio/AMP)
• P/SEAT (PASS) 30 A Passenger Seat Manual Switch
• P/SEAT (DRV) 30 A Driver IMS Control Module, Driver Seat Manual Switch

Engine Compartment Fuse Box

• MDPS 80 A MDPS (Motor Driven Power Steering) Unit
• COOLING FAN 80 A Cooling Fan Controller
• EPB 60 A ESC (Electronic Stability Control) Module
• B+2 50 A ICU Junction Block (IPS 8/IPS 10/IPS 11/IPS 12/IPS 13/IPS 14/IPS 15)
• B+3 50 A ICU Junction Block (Fuse - P/WINDOW LH, RR SEAT (LH), P/SEAT (DRV), P/SEAT (PASS), MODULE 11)
• B+4 50 A ICU Junction Block (Fuse - MODULE 8, S/HEATER (FRT), P/WINDOW RH, AMP, SUNROOF 1)
• ESC 1 40 A ESC (Electronic Stability Control) Module
• ESC 2 40 A ESC (Electronic Stability Control) Module PTC HEATER 1 50 A PTC Heater 1 Relay PTC HEATER 2 50 A PTC Heater 2 Relay
• ECU 6 15 A ECM (Engine Control Module)
• TCU 1 15 A TCM (Transmission Control Module)
• TCU 3 15 A TCM (Transmission Control Module)
• B+5 50 A ICU Junction Block (Fuse - DOOR LOCK, IBU (Integrated Body Control Unit) 1, IBU (Integrated Body Control Unit) 2, BRAKE SWITCH, CHILD LOCK, RR SEAT (RH), SUNROOF 2)
• BLOWER FRT 1 40 A Blower FRT Relay
• OIL PUMP 40 A Electric Oil Pump Inverter
• REAR HEATED 40 A Rear Heated Relay
• B+1 50 A ICU Junction Block (IPS 1/IPS 2/IPS 3/IPS 5/IPS 6/IPS 7, Long/Short Term Load Latch Relay)
• BLOWER RR 1 40 A Blower RR Relay
• 4WD 20 A 4WD ECM (Engine Control Module)
• AMS 10 A Battery Sensor
• H/LAMP HI 15 A H/Lamp HI Relay
• IG2 40 A Start Relay, PCB Block (IG2 Relay)
• INVERTER 30 A AC Inverter Unit
• POWER TAIL GATE 30 A Power Tail Gate Module
• TRAILER 30 A Trailer Connector
• HEATED MIRROR 10 A Driver/Passenger Power Outside Mirror, Front A/C Control Module
• BLOWER RR 2 10 A Rear A/C Control Module
• WIPER FRT 2 10 A IBU (Integrated Body Control Unit)
• BLOWER FRT 2 10 A Front A/C Control Module
• WIPER FRT 1 30 A Wiper FRT Relay
• B/ALARM HORN 15 A B/Alarm Horn Relay
• FUEL PUMP 20 A Fuel Pump Relay
• ACC 1 40 A ACC 1 Relay
• ACC 2 40 A ACC 2 Relay
• ECU 5 30 A Engine Control Relay
• IG1 40 A IG1 Relay
• A/C 10 A A/C Relay
• HORN 15 A Horn Relay
• POWER OUTLET 2 20 A Front Power Outlet
• ACC 3 15 A Rear USB Charger, Luggage USB Charger, Driver/Passenger Seat Cushion USB Charger
• ACC 4 10 A Front USB Charger, Rear USB Charger RH
• ICU 10 A ICU Junction Block (Fuse - ACC)
• SENSOR 1 10 A Fuel Pump Relay
• SENSOR 4 15 A Canister Close Valve, Oxygen Sensor #1/#2/#3/#4
• ESC 3 10 A Data Link Connector, ESC (Electronic Stability Control) Module
• TCU 2 10 A TCM (Transmission Control Module), Transaxle Range Switch
• SENSOR 6 10 A Electric Oil Pump Inverter
• ECU 4 10 A ECM (Engine Control Module)
• POWER OUTLET 1 20 A Luggage Power Outlet
• POWER OUTLET 3 20 A Rear Power Outlet
• SENSOR 5 10 A Oil Pump Solenoid
• SENSOR 2 10 A A/C Relay, Purge Control Solenoid Valve, Oil Control Valve #1/#2/#3/#4 (Intake/Exhaust), Variable Intake Solenoid Valve #1/#2, Electronic Thermostat
• SENSOR 3 20 A Cooling Fan Controller
• ECU 1 20 A ECM (Engine Control Module)
• ECU 2 20 A ECM (Engine Control Module)
• ECU 3 20 A ECM (Engine Control Module)
• IGN COIL 20 A Ignition Coil #1/#2/#3/#4/#5/#6



[CDPond]

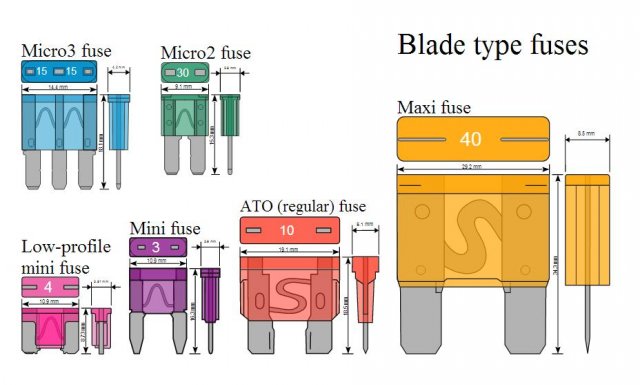

Anyone have the spec for the actual fuse sizes (not amperage, the size....). I'm assuming most will be blade fuses, but are they regular, mini, low profile mini, micro, etc.? And for the cartridge fuses, are they full height or low profile?

I can't seem to find this information anywhere in the owner manual. I found the charts and descriptions as in the OP above, but no descriptions other than amps. And yes, I haven't bothered to go out and start pulling fuses in the Telluride to figure it out... yet...



[AmyinNC]

For the life of me I cannot figure out which of these controls the license plate bulbs. Can anyone help?



[Kmiles]

For the life of me I cannot figure out which of these controls the license plate bulbs. Can anyone help?

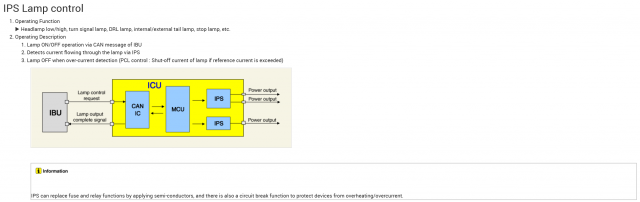

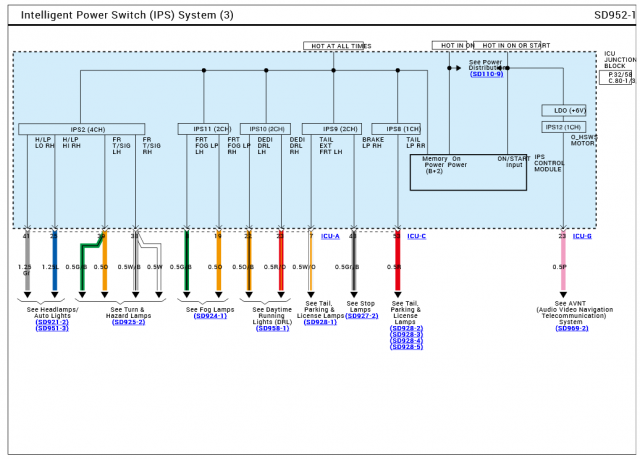

This is from a 2023 wiring diagram. It shows the license plate lights are from the IPS system. Not sure where that is located, but hopefully gives you a clue. It seems to indicate that there is not a fuse.



[AmyinNC]

Thank you KMiles! I appreciate your efforts and I will look at this more closely tomorrow.
