May I pick your brain with my towing brake controller questions?

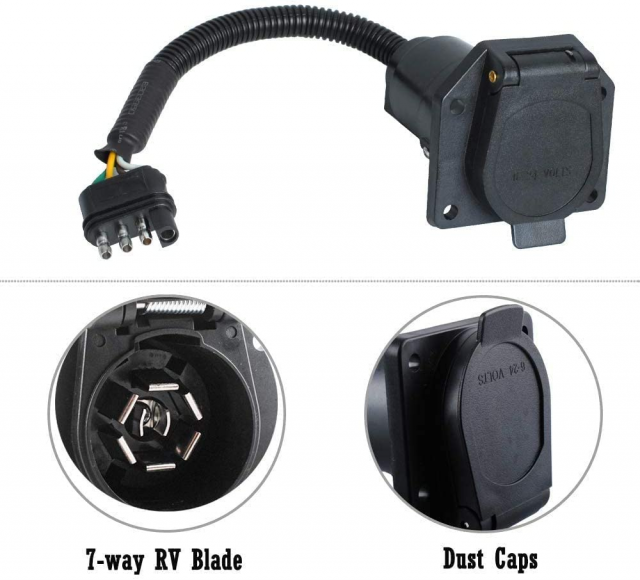

We have a 2020 Telluride S. It came with some towing elements pre-installed like a 4 pin out of the back and a hitch. I am not sure if that is the TOWING package that the SX have. We have a trailer with 7 pin, 3700 lb dry weight 4600 lb fulll, so we bought and installed the 4 to 7 pin converter shown below. So far no trouble with the trailer lights but I will follow up on the recall on them.
The issue is, we have been trying to get a brake controller to tow our 3750 trailer installed and everyone is losing their mind at the idea of tapping into the electrical, pulling even part of the dash, etc. everyone refuses to do it. They say Kia or Curt or another RV type manufacturer needs to come out with a plug and play solution, blah blah. We went to trailer places, boat places, RV places, KIA. We are now looking at small family business or shade tree mechanics or doing it ourselves.
So we took the dash off and watched that YouTube video referenced above and am more confused. Then I saw your notes of all the mistakes this guy was making and though Wow,
Just like in the video, we dont have that quick connect port behind the steering wheel that other (not telluride) vehicles have.

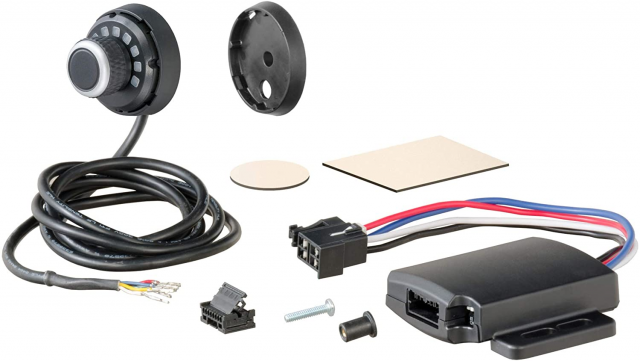

I purchased the Curt Spectrum brake controller.
https://www.curtmfg.com/part/51170 I need to get it installed but need to provide all the parts needed.

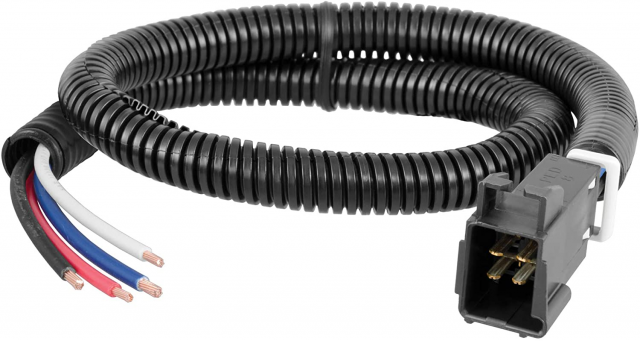

I realized I needed and just ordered Curt Pigtail Wiring Harness that is called out in the wiring diagram.
The more I read the more I am worried that I will do it wrong or that someone else will damage the brake electrical system. I talked to Kia that said that splicing into the braking lights and system will only void electrical parts of the warranty, not the engine or drive train in any way. So we NEED to get this brake controller installed but when you say we need a diode etc. I begin to worry!~

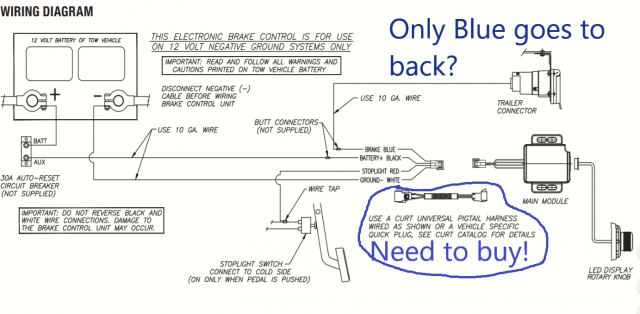

Here is the wiring diagram that came with the brake controller. Notice that it is very similar to the video but in their connections, only the blue wire goes to the back of the vehicle and connects to the trailer 7 pin controller. What happened to the other two wires? Why did he need black power and white ground in the back? I thought maybe you could make sense of this. Do I need to run all 3 wires to the back or add a diode in this current diagram or can I Just hand it to someone with the parts and say do it exactly like this?
Last question. How do we know or just take his word for it that it is the green wire that is for the brakes. Video says he spent 2 hours figuring it out. How could I verify that before I tap into it?
Any help appreciated. Linda and Sherwood in Virginia.
PS the Telluride tows the trailer fine, BTW. This photo was while we were adjusting the tongue, she is no longer tongue heavy like that.
Nice video. However there are some discrepancies that need to be pointed out.
1) The power wire from battery to brake controller MUST BE at least 12 gauge stranded wire. It looks smaller than 12 gauge.
2) The ground wire from battery to brake controller can be 18 gauge or larger, as it does not carry large currents, only the electronics of the brake controller.
3) The trailer brake wire (from brake controller to 7 way) MUST BE at least 12 gauge stranded wire. It looks smaller than 12 gauge.
4) The ground wire from 7 way to frame MUST BE at least 12 gauge. This brown wire is definitely smaller than 12 gauge. (You have to remember that this ground is carrying current of the brake magnets, along with the lights. And those loads are much more than one would realize, therefore the 12 gauge wire.
5) The brake controller brake signal wire can be small as this does not carry a lot of current. HOWEVER, the brake controller will try and back power the vehicle"s brake signal when using the slide control on the brake controller. This may result in damage or throwing error codes. Remedy: Install a 1N4001 diode in between the red wire on brake controller harness and the wire going to the brake signal. Make sure the band on the diode is facing the red wire on brake controller. The diode will prevent back feeding. Another note: Some vehicles do not use an actual brake switch, instead they use a variable potentiometer and run off 5 volts. Those type of vehicles will need the diode, due to having to get 12 volt brake signal at brake outputs to brake lights in most cases. DO NOT USE THE BRAKE WIRING IF THE VEHICLE USES THE POTENTIOMETER SENSOR.
6) I don't believe a circuit breaker is to be used with the brake controller. We use a 20 amp fuse.
7) If you do plan on running the 12 volts from the battery to the 7 way, again use 12 gauge wire. This wire should be fused at no more than 20 amps.
Please note: I am not trying to criticize, just point out issues that others should be aware of. BTW: I am an electrical engineer for HOPKINS.
Lastly, doing these mods may void the warranty of the vehicle.
